A fully handcrafted RIAA tube phono preamplifier allows music lovers to experience every nuance of their cherished vinyl records with a rich, deep, dynamic, transparent, and detailed warm sound.
To achieve the highest audiophile-quality performance, this phono preamp incorporates many advanced solutions. Both cascades and the pentode tubes in the first and second stages operate in triode mode, delivering exceptional musicality and extracting every detail from your favorite vinyl.

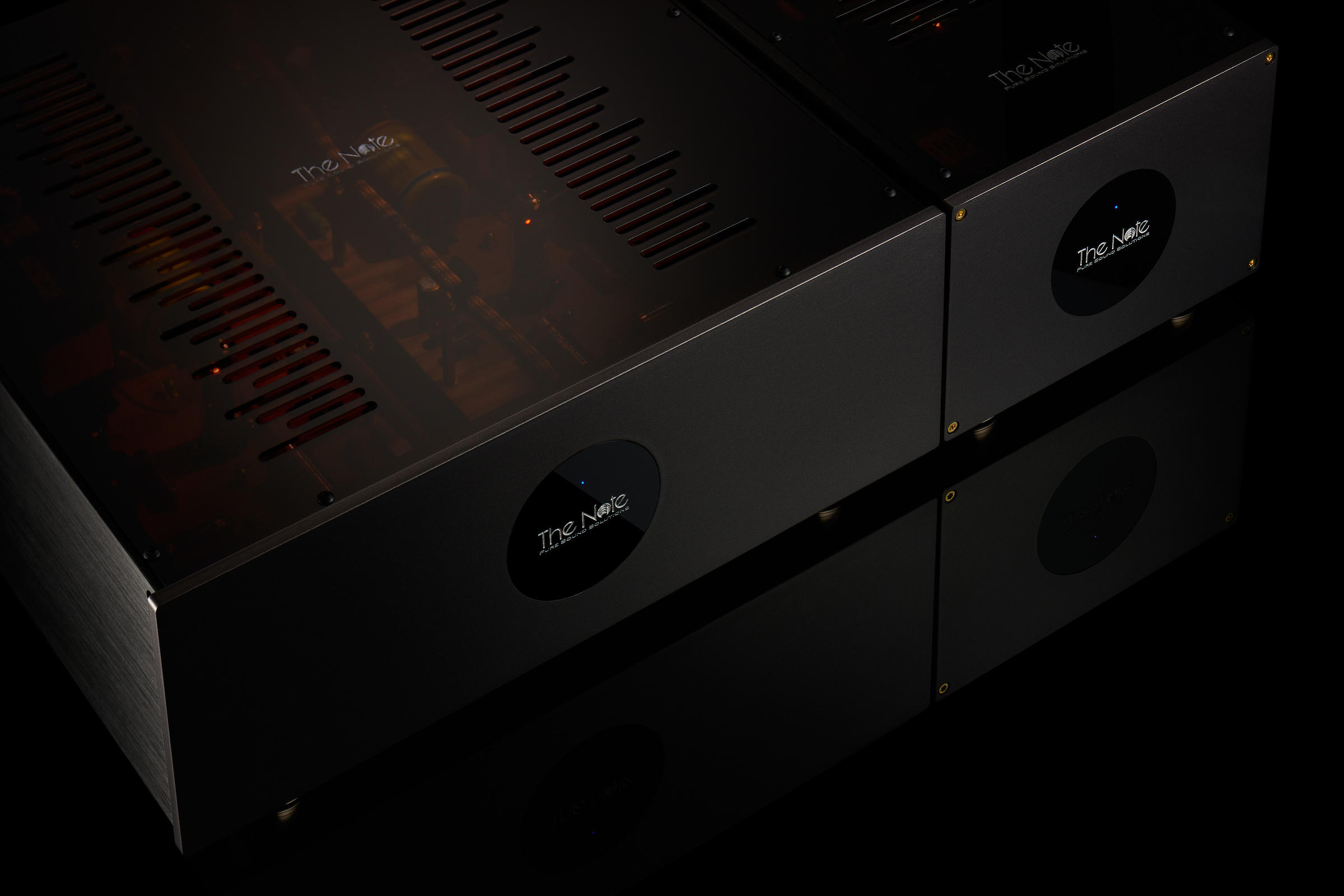

This unique design features an external power supply, dual monaural circuitry, point-to-point wiring technology, and two-stage amplification. Only the finest quality components and parts have been used, carefully selected, matched by hand, and in some cases, custom-made in-house to ensure the best possible performance.
At The Note™, we invite you to enjoy our products and immerse yourself in unforgettable emotions while listening to your favorite music!
Technical Specifications:
Input Impedance: 47KOhms (MM Phono)
Input Sensitivity: 120mV for 1V output
Output Level: 0,7V (RCA unbalanced)
Output Impedance: < 10 Ohms
Output Noise: < 0.5mV (RMS unweighted)
Power Consumption: 75W
Mains Input: AC 100-120V or 220-240V 50/60Hz
Tubes: 1 x GZ32 Rectifier
2 x EF86
2 x EL84
Dimensions:
Phono : Height (mm) 150 x Width (mm) 430 x Depth (mm) 408
PSU: Height (mm) 150 x Width (mm) 220 x Depth (mm) 312
19800€
